Authentication

Authentication

High-Level Flow

1. User requests /rlang-app/ or /python-app/.
2. NGINX issues internal auth subrequest to /_auth_check.
3. /_auth_check proxies to auth-admin:/auth/check.
4. If 401, user is redirected to /auth/login?next=<original-path>.
5. If 403, user is sent to /auth/forbidden (authenticated but missing role permission).
6. If 200, request is proxied to target Shiny app.

User-Facing Endpoints

• GET /auth/login - login form
• POST /auth/login - credential verification + session creation
• GET /auth/logout - logout confirmation page
• POST /auth/logout - CSRF-validated logout, session delete, cookie clear
• GET /admin/users - admin-only user management UI
• GET /admin/roles - admin-only role and app-access management UI

Session Model

• Passwords stored as bcrypt hashes.
• Browser receives opaque session token cookie.
• Server stores SHA-256 hash of token (sessions.token_hash), not raw token.
• Session is valid only if:
  • user is active
  • session exists
  • session is unexpired
• App access is valid only if:
  • user is admin, or
  • user has at least one role mapped to the requested app key

Role Model

• App keys:
  • rlang_app -> /rlang-app
  • python_app -> /python-app
• A non-admin user can open an app only when one of their roles grants that app key.
• Admin users have global access without role checks.

CSRF Controls

• State-changing requests require a CSRF token.
• Covered operations:
  • logout
  • admin create/update/delete/toggle actions

Authentication Flow Screenshots

Login Form

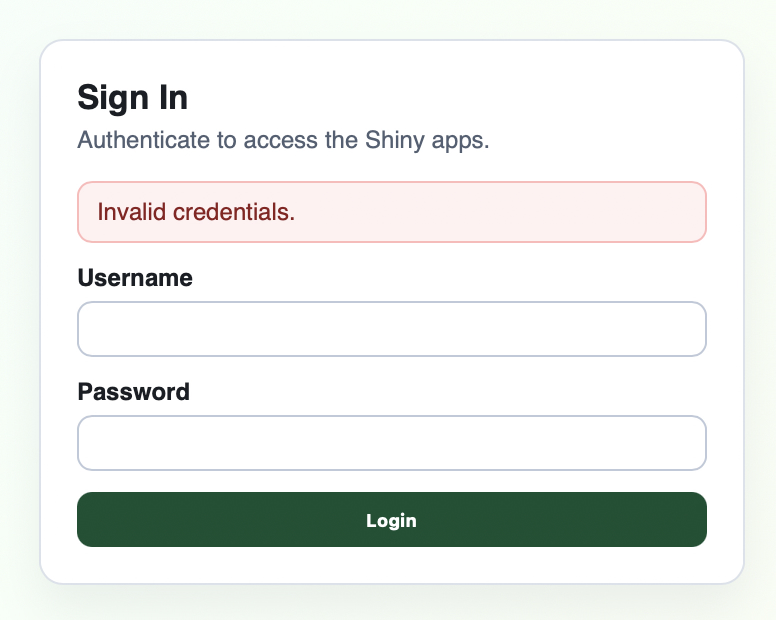

Invalid Credentials

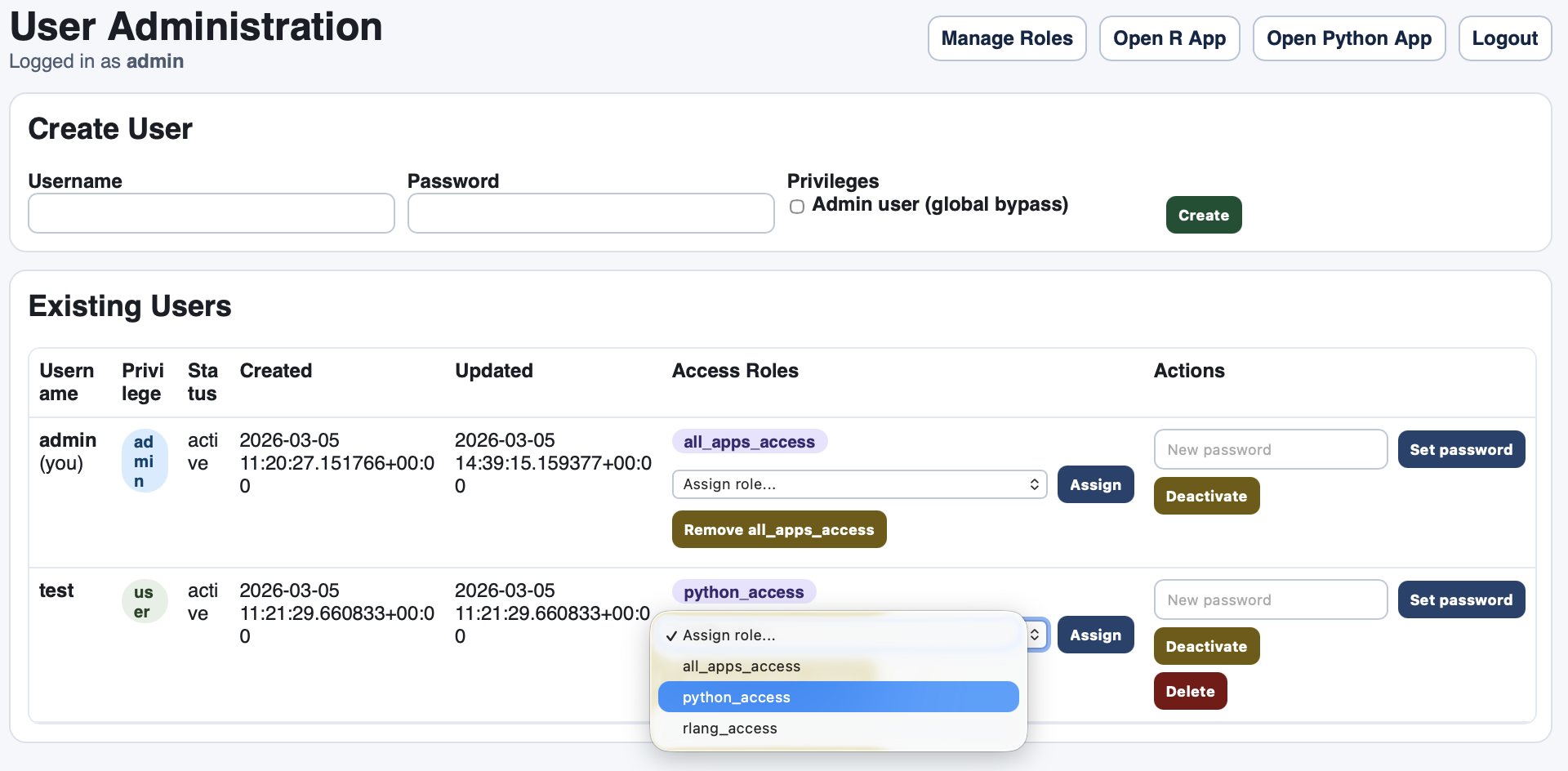

User-Role Assignment

Forbidden Access (Missing Role Permission)

Auth Schema (ER)

erDiagram
    USERS ||--o{ SESSIONS : "owns"
    USERS ||--o{ USER_ROLES : "assigned"
    ROLES ||--o{ USER_ROLES : "contains users"
    ROLES ||--o{ ROLE_APP_ACCESS : "grants apps"

    USERS {
        BIGSERIAL id PK
        TEXT username UK
        TEXT password_hash
        BOOLEAN is_admin
        BOOLEAN is_active
        TIMESTAMPTZ created_at
        TIMESTAMPTZ updated_at
    }

    SESSIONS {
        BIGSERIAL id PK
        BIGINT user_id FK
        CHAR(64) token_hash UK
        TEXT csrf_token
        TIMESTAMPTZ expires_at
        TIMESTAMPTZ created_at
    }

    ROLES {
        BIGSERIAL id PK
        TEXT name UK
        TEXT description
        TIMESTAMPTZ created_at
        TIMESTAMPTZ updated_at
    }

    USER_ROLES {
        BIGINT user_id FK
        BIGINT role_id FK
        TIMESTAMPTZ created_at
    }

    ROLE_APP_ACCESS {
        BIGINT role_id FK
        TEXT app_key
        TIMESTAMPTZ created_at
    }

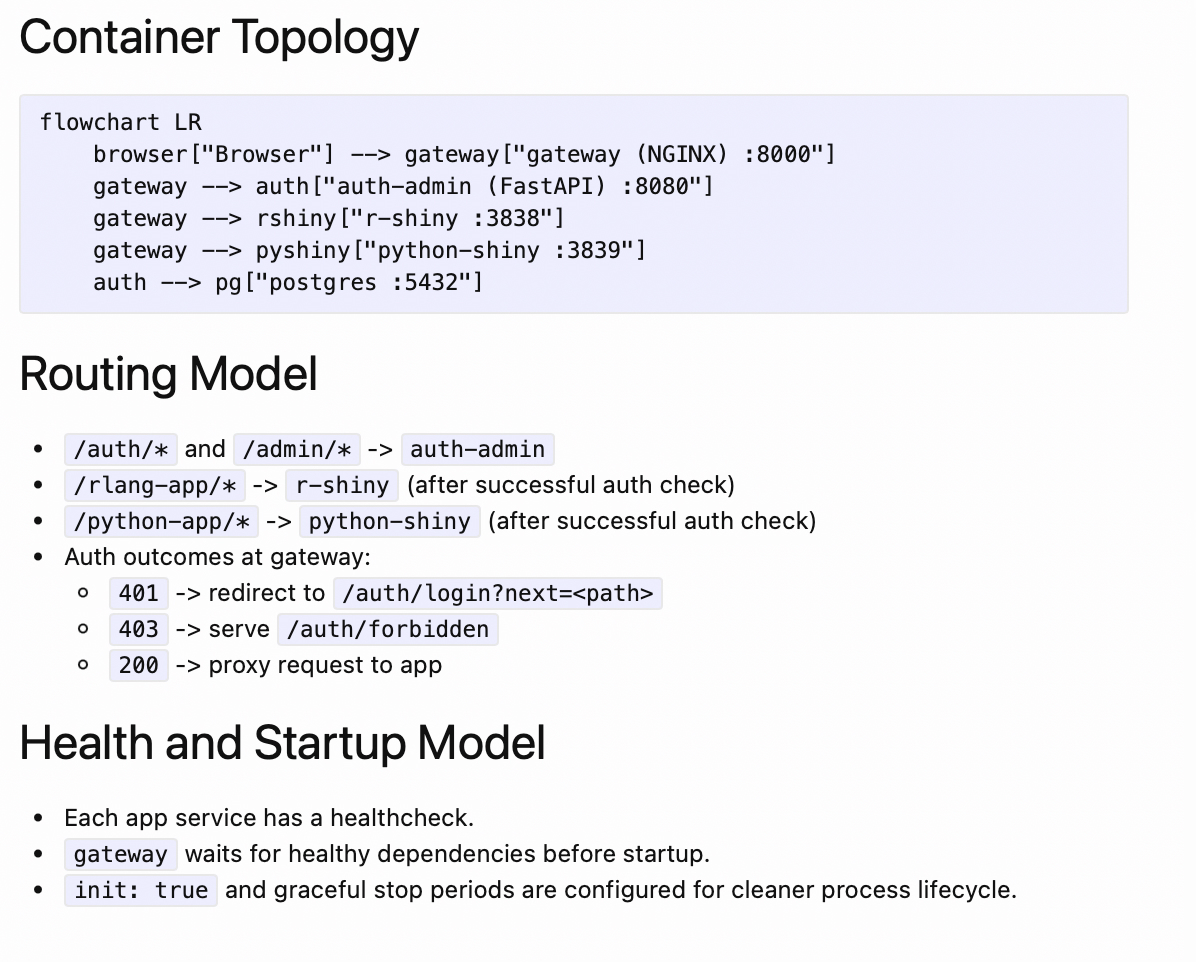

Rendered example:
